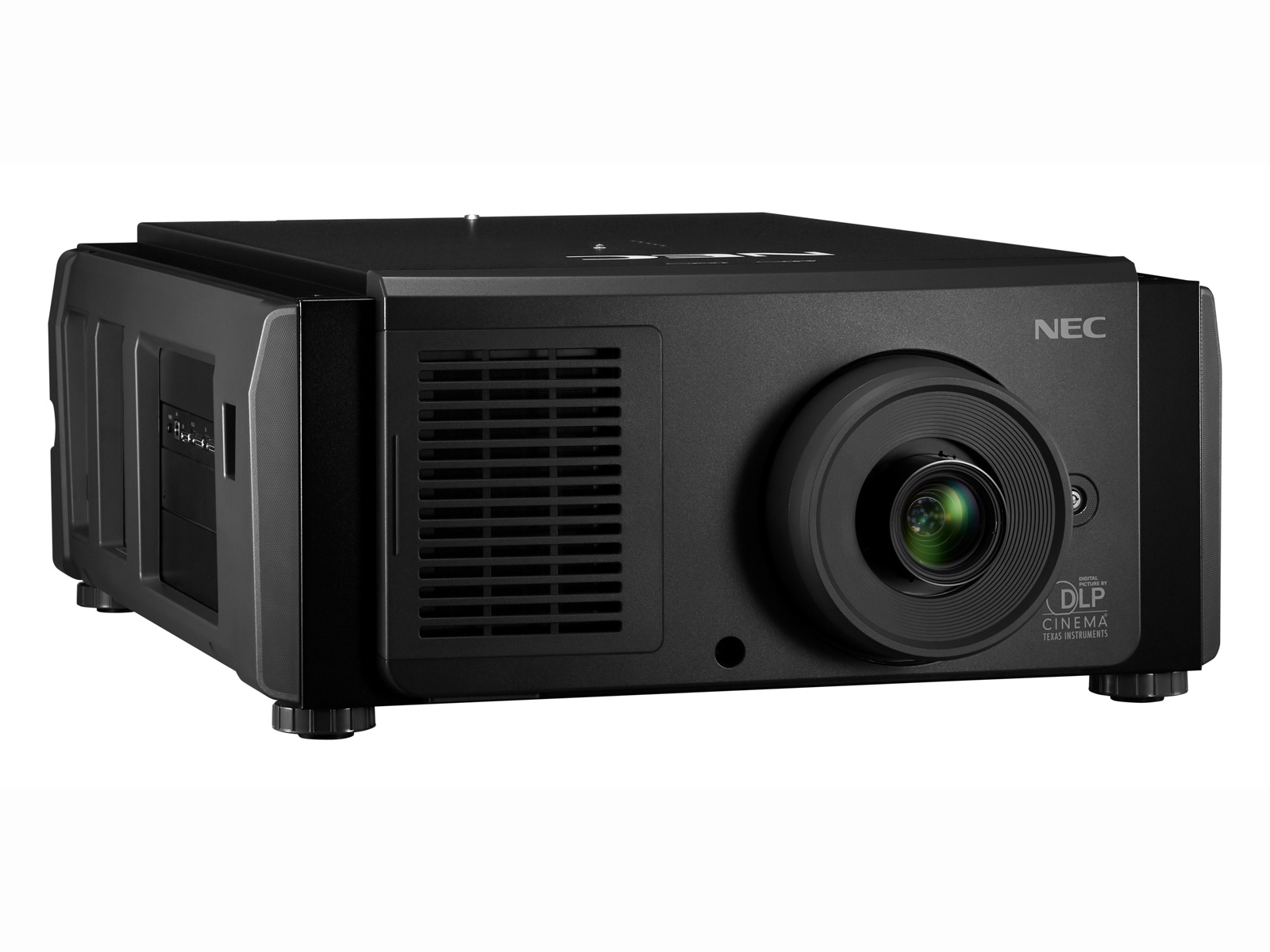

NEC NC1402L - Projection Room / Cinema Projection

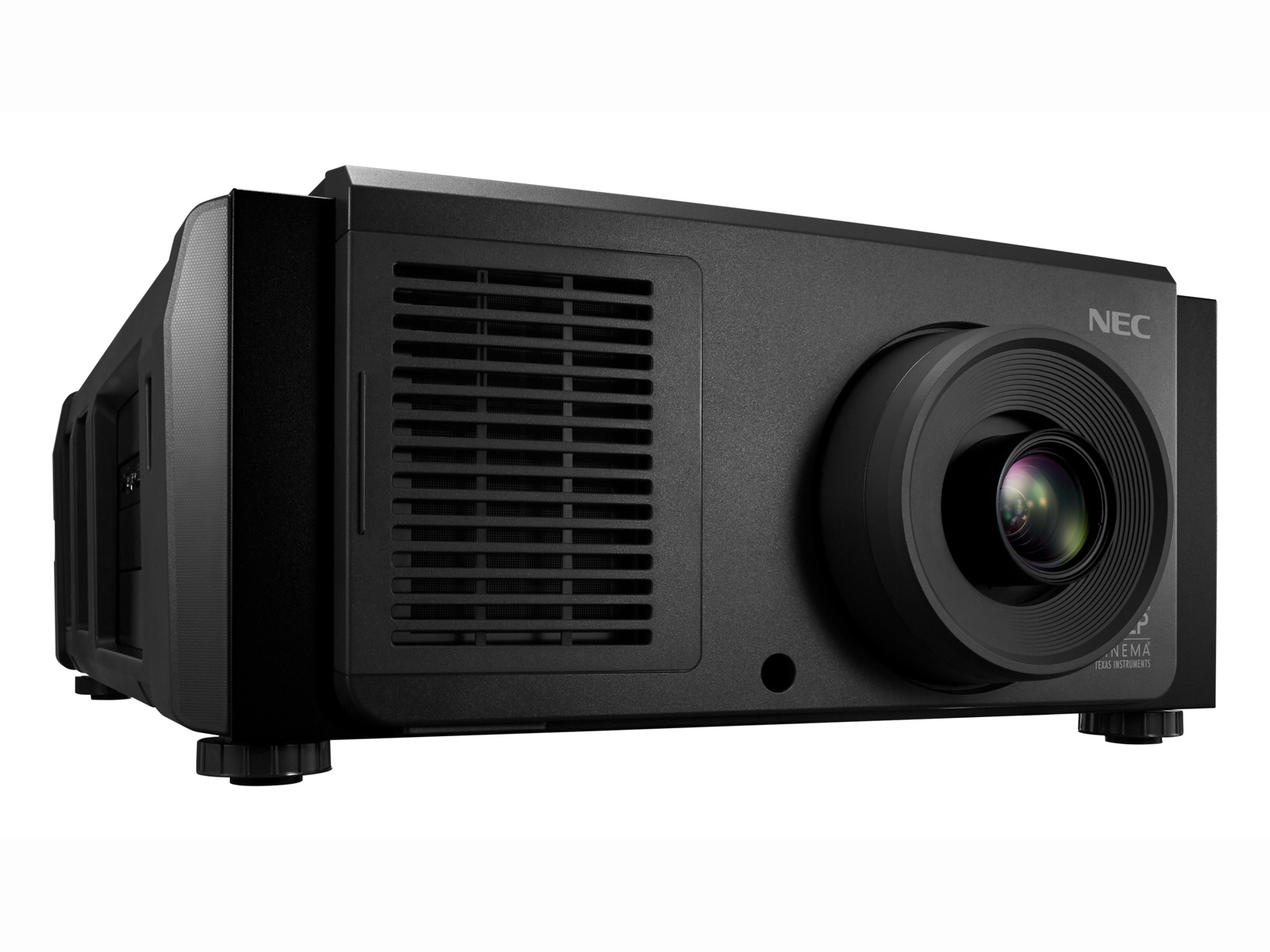

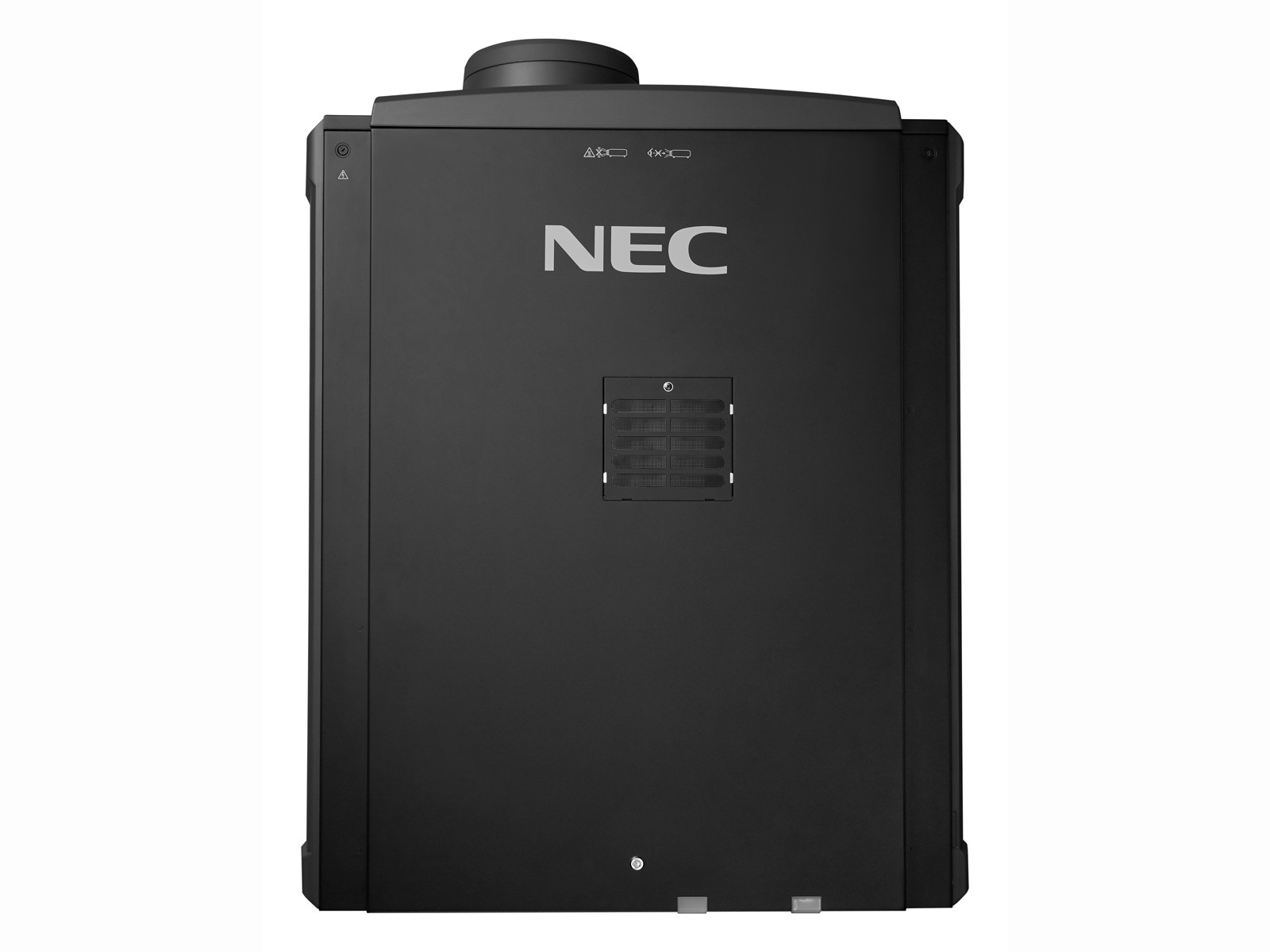

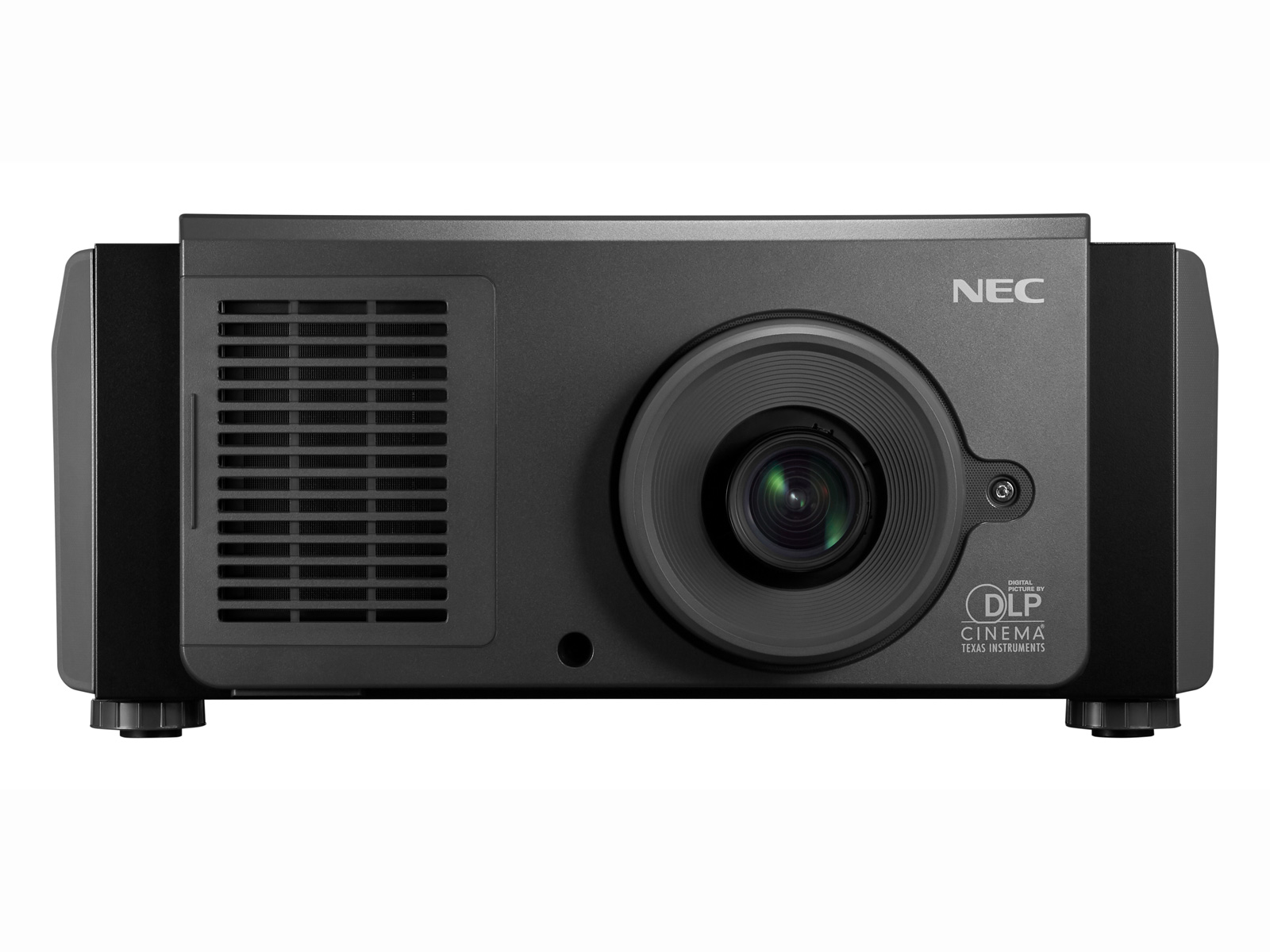

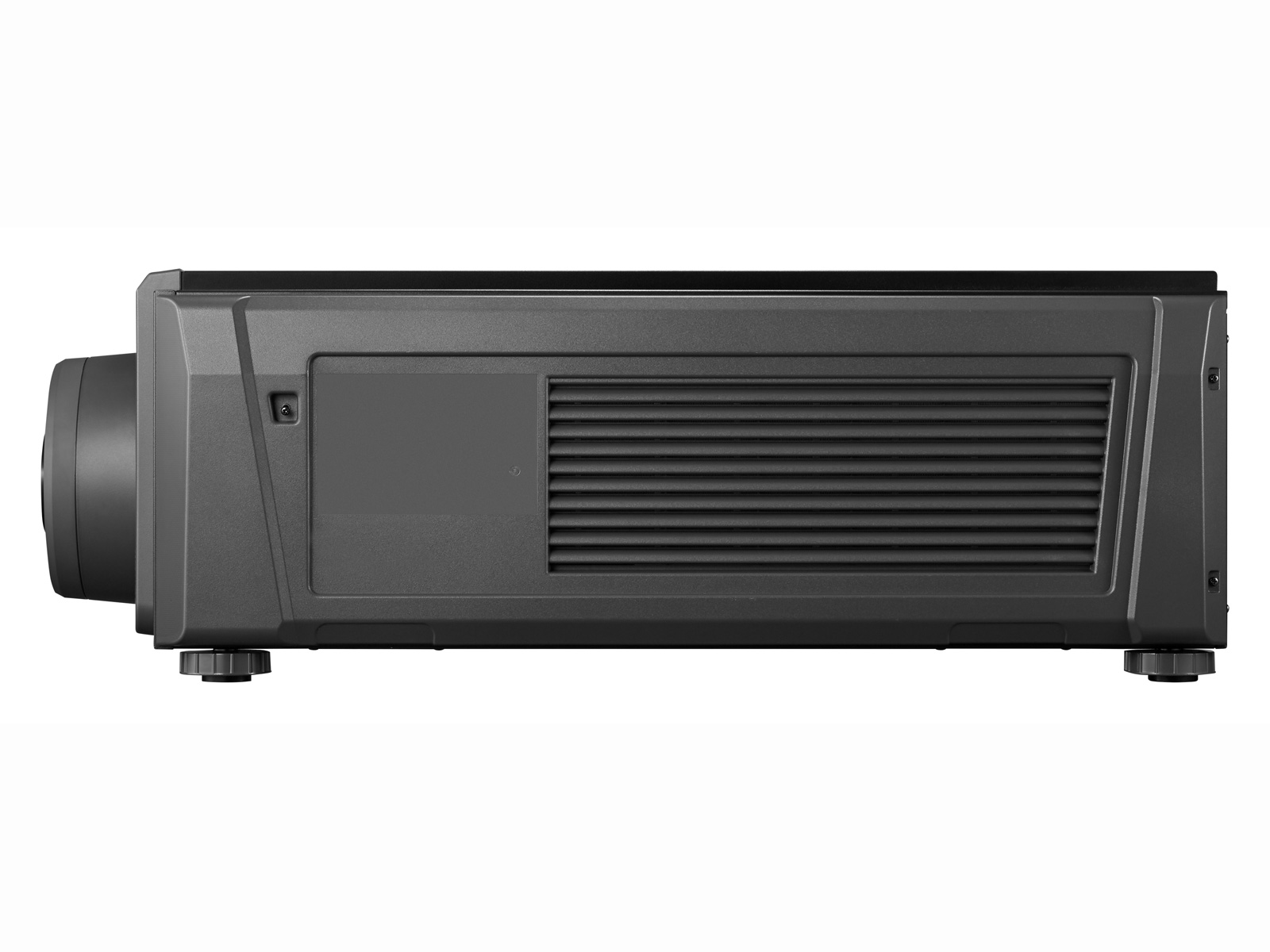

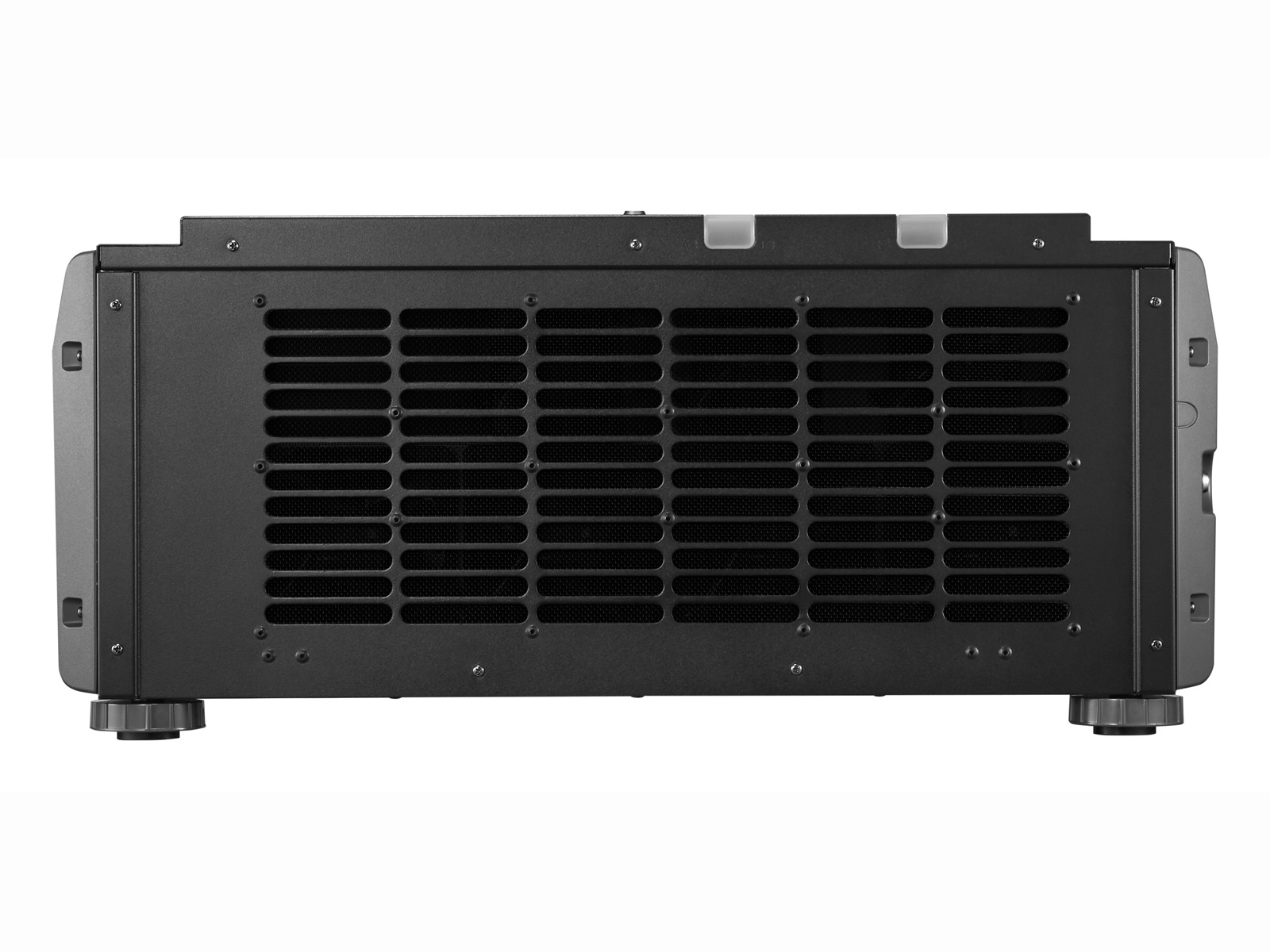

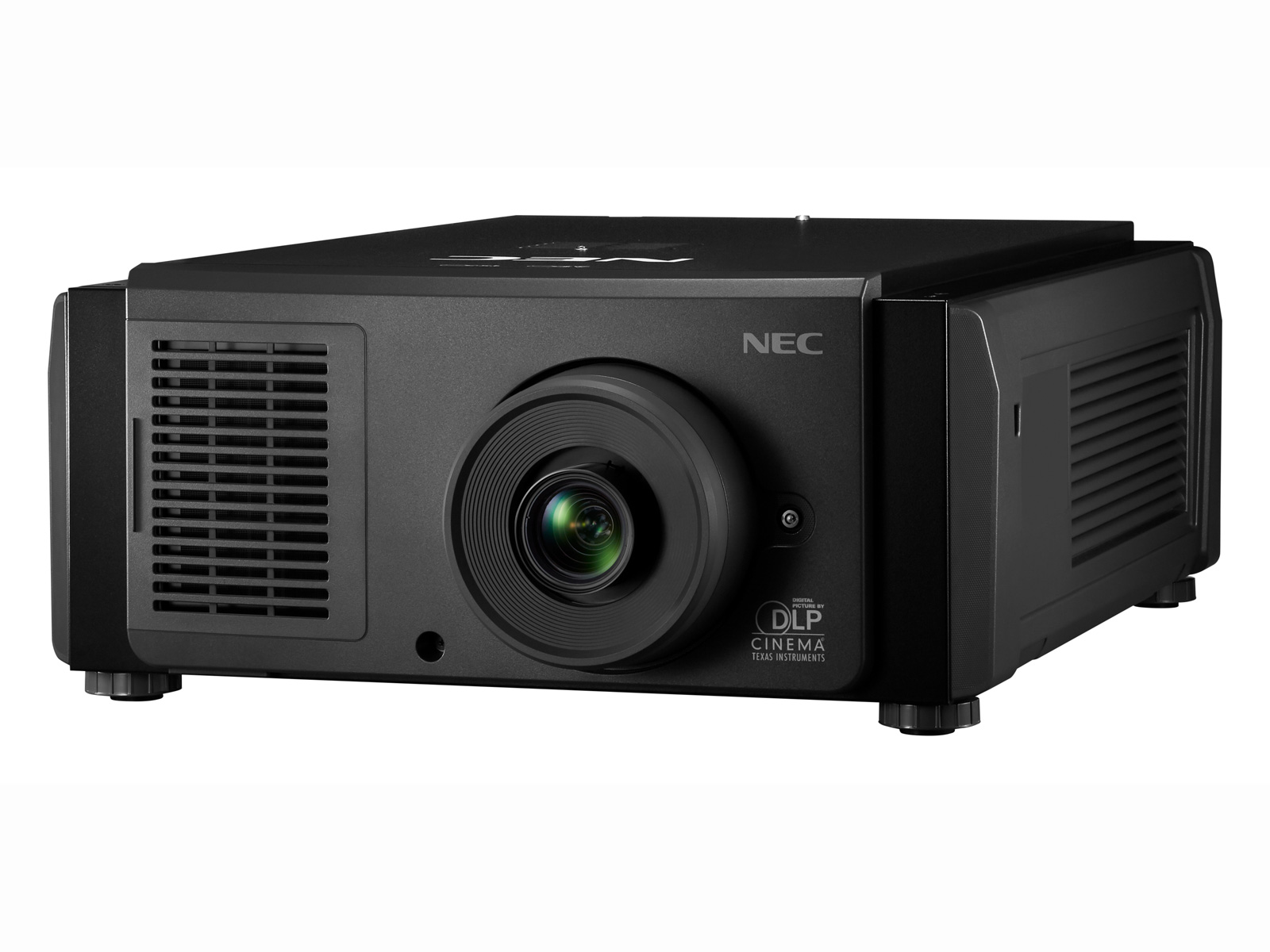

NEC NC1402L

Quietest projection performance for mid-sized screens

Built upon the latest Laser light source technology, the NC1402L digital cinema projector impresses audiences with crisp colours and premium quality imaging. At just 49dB in operation, the almost silent projector supports boothless cinema solutions.

Highly flexible, without the need for a special exhaust system, the projector is easy to install and suitable for ceiling, floor or mobile applications in mid-sized theatres with screen sizes of up to 14m wide.

With maintenance-free operation including protection against dust ingress and a low, eco-friendly power consumption, theatre operators benefit from a reduced overall total cost of ownership (TCO) and therefore achieve a greater per seat revenue.

Treat your movie-goers to next generation digital cinema projection for immersive, out-of-this-world motion picture experiences.

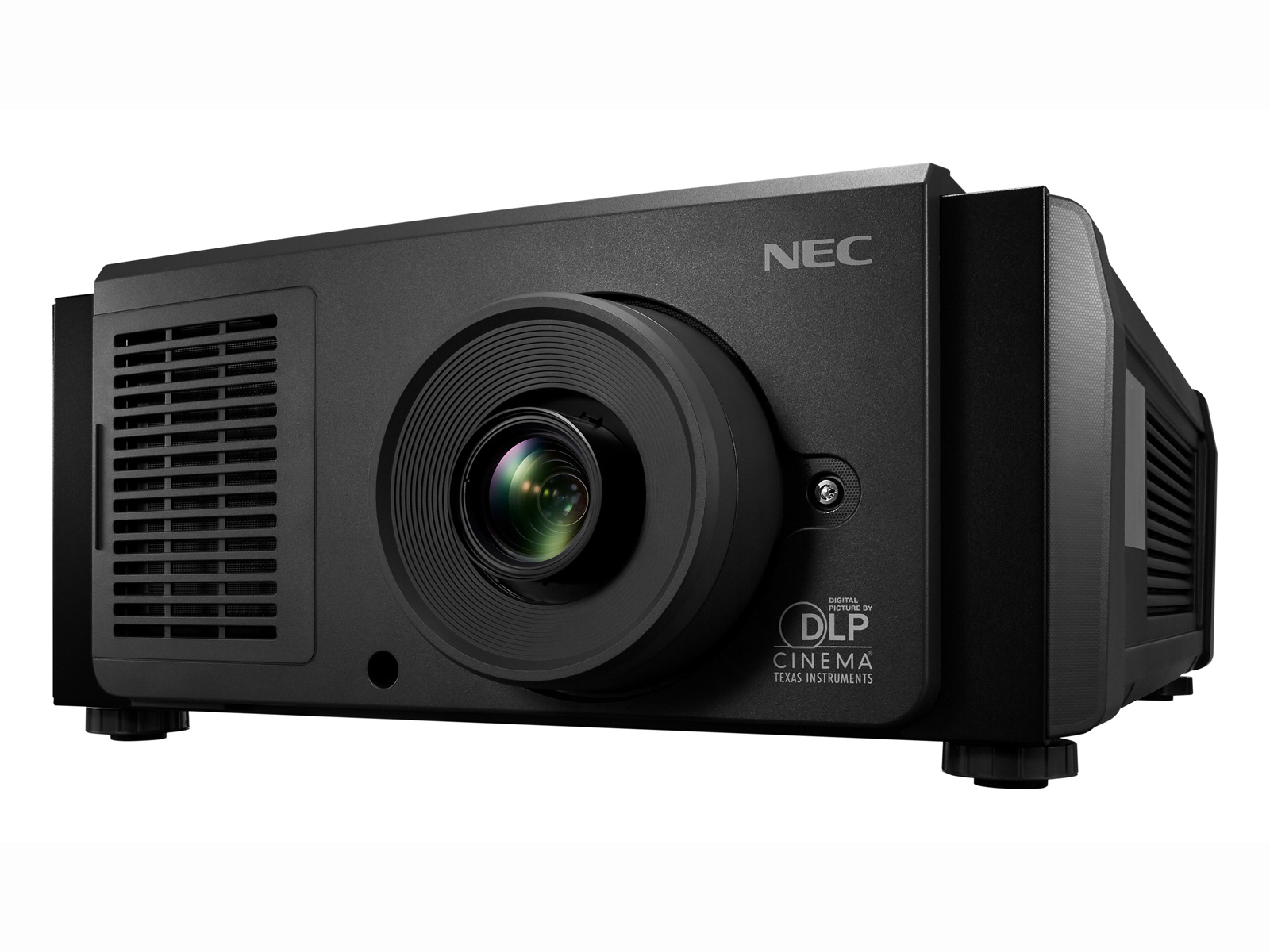

NEC_NC1402L_upperslant_right_web_LaserPhosphorLogo

Optical

Projection Method

3-chip DLP Cinema® Technology

Screen Size [m]

up to 14 in DCI colour (1.8 Gain screen)

Light Source

Laser Light Source, expected life: up to 50000 h ¹

Lens

Zoom / Focus / Shift: Motorized
Other: Range of shift is dependent on lens
Primary Lenses: NP-9LS12ZM1: 1.2-1.72:1; NP-9LS13ZM1: 1.33-2.1:1; NP-9LS16ZM1: 1.62-2.7:1; NP-9LS20ZM1: 2.09-3.9:1

DMD Specifications

2048 x 1080
Chip: 0.69" S2K, DLP Cinema® Technology

Cooling Method

Liquid: Air and liquid cooling inside

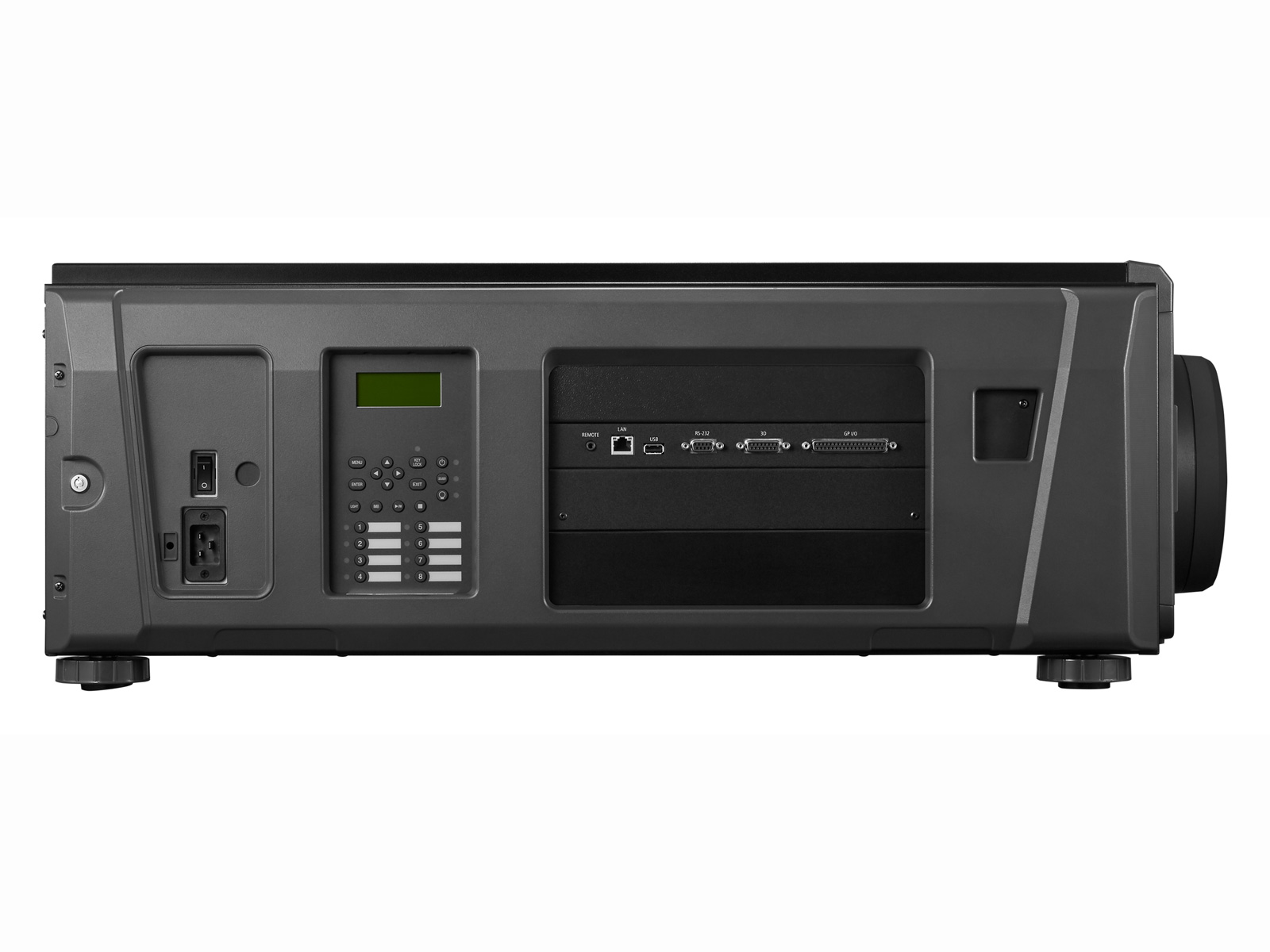

Connectivity Projector

External Controls

1 x GPIO (3D) (D-sub 15 pin female); 1 x GPIO (D-sub 37 pin female); 1 x RJ45 100Base-T

Environmental Conditions

Operating Temperature [°C]

10 to 35

Operating Humidity [%]

10 to 85 - non-condensing

Storage Temperature [°C]

-10 to 50

Storage Humidity [%]

10 to 85 - non-condensing

Electrical

Power Supply

Built-in power supply
Projector Power Supply Unit: 200 to 240V AC, 50/60Hz, single phase

Rated Input Current

Projector power: 9.5A @ 200V-240V

Power Consumption [W]

1500 typ.

Heat Dissipation (BTU)

5504 max.

Mechanical

External Dimensions (W x H x D) [mm]

700 x 288 x 812 (without lens and protrusions)

Weight [kg]

69 (without lens)

Fan Noise [dB (A)]

< 48

Additional Features

Special Characteristics

Built-in IMS (IMS3000, optional); Compact model; DCI compliant; Dust sealed optical engine; Full HFR 3D support; Laser Light System; Latest digital technology; Low TCO; Metal filter

Green Features

Ecological Materials

Laser technology reduces power usage and reduces replacement materials required

Interfaces: Dolby IMS3000 (optional)

External Controls

2 x RJ45 (4 GPI and 6 GPO); 2 x RJ45 Gigabit Ethernet

Input Terminals

1 x USB Type 2.0; 2 x 3GSDI bidirectional (input and output); 2 x USB Type 3.0; eSATA; HDMI

Output Terminals

2 x RJ45 (16-channel AES3-EBU Digital Audio)

Additional Features

HFR 3D Support (48 Hz/eye, 60 Hz/eye); Integrated SMS; Integrated Storage: 2 TB (DCP, RAID5); NAS support

Manufacturer

Dolby (The Dolby IMS3000 is not a NEC product. NEC shall not in any way be liable for any product specifications).

Regulations

Europe

EN55035; EN61000-3-2/-3-3 (Marking: TUV, CE); EN62368-1/EN55032 Class A

Laser / Lamp standard

EN60825-1 Ed3:2014 Class1; EN62471-5 Ed1:2015 Risk Group3; IEC60825-1 Ed3:2014 Class1; IEC62471-5 Ed1:2015 Risk Group3

Morocco

NM EN55024; NM EN60950-1; NM EN61000-3-2/-3-3 (Marking Morocco mark)

Other EMEA

EN55024; EN55032 Class A; EN55035; EN60950-1; EN61000-3-2/-3-3 (Marking CE)

Russia/Belarus/Kazakhstan

CISPR24; IEC61000-3-2/-3-3 (Marking: EAC)

United Arab Emitates

ECAS:IEC60950-1 (Marking: ECAS)

Warranty

2 years, parts warranty

Light Source

2 years or 7500h (whatever comes first)

Datasheet for NEC NC1402L

¹ 50% of initial brightness at the end of specified laser life time at 25 degree ambient temperature, under normal usage condition‚ not covered by standard warranty
