NEC P547UL

Visible yet noiseless – bringing a sense of calm to your meeting spaces

Scalable visualisation has never been so silent. With an outstandingly low noise level of just 22dB (ECO mode), the P547UL is quieter than the ticking of a watch.

Thanks to the completely sealed engine, this laser projector is filter-free meaning 20,000 hours of maintenance-free operation. Comprehensive connectivity and optional WiFi provide the utmost flexibility and time saving operation. The enhanced embedded MultiPresenter functionality enables wireless presentation and screen sharing for up to 16 devices simultaneously, out of the box to your meeting room. The technology is future-proof with the capability of processing 4K inputs at 30Hz. Bringing the future of projection to your meeting room has never been easier, quieter and as low maintenance than with the NEC P547UL.

24/7 Operation Crestron RoomView DICOM HDBaseT IP 5X Laser Phosphor Super Silent Projection
Projection Technology
3LCD Technology
Native Resolution
1920 x 1200 (WUXGA)
Aspect Ratio
16:10
Contrast Ratio
3000000:1
Brightness 1
5400 Normal / 3240 Lumen Eco; 5700 Centre Lumen
Lamp
Laser Light Source
Light Source Life [hrs]
20000 2
Lens
F= 1.5–2.1, f= 17.2–27.7 mm
Lens shift
Up to H:±29, V:+60,-0
Keystone correction
+/- 30° manual horizontal / +/- 30° manual vertical
Projection Factor
1.23 – 2 : 1
Projection Distance [m]
0.8 – 12.9
Screen Size (diagonal) [cm] / [inch]
Maximum: 762 / 300"; Minimum: 76.2 / 30"
Zoom
Manual; x1.6
Focus Adjustment
Manual
Supported Resolutions
1920x1200 (Maximum resolution of analog input); 3840 x 2160 (Maximum resolution of digital input); 3840x2160 @ 30hz digital

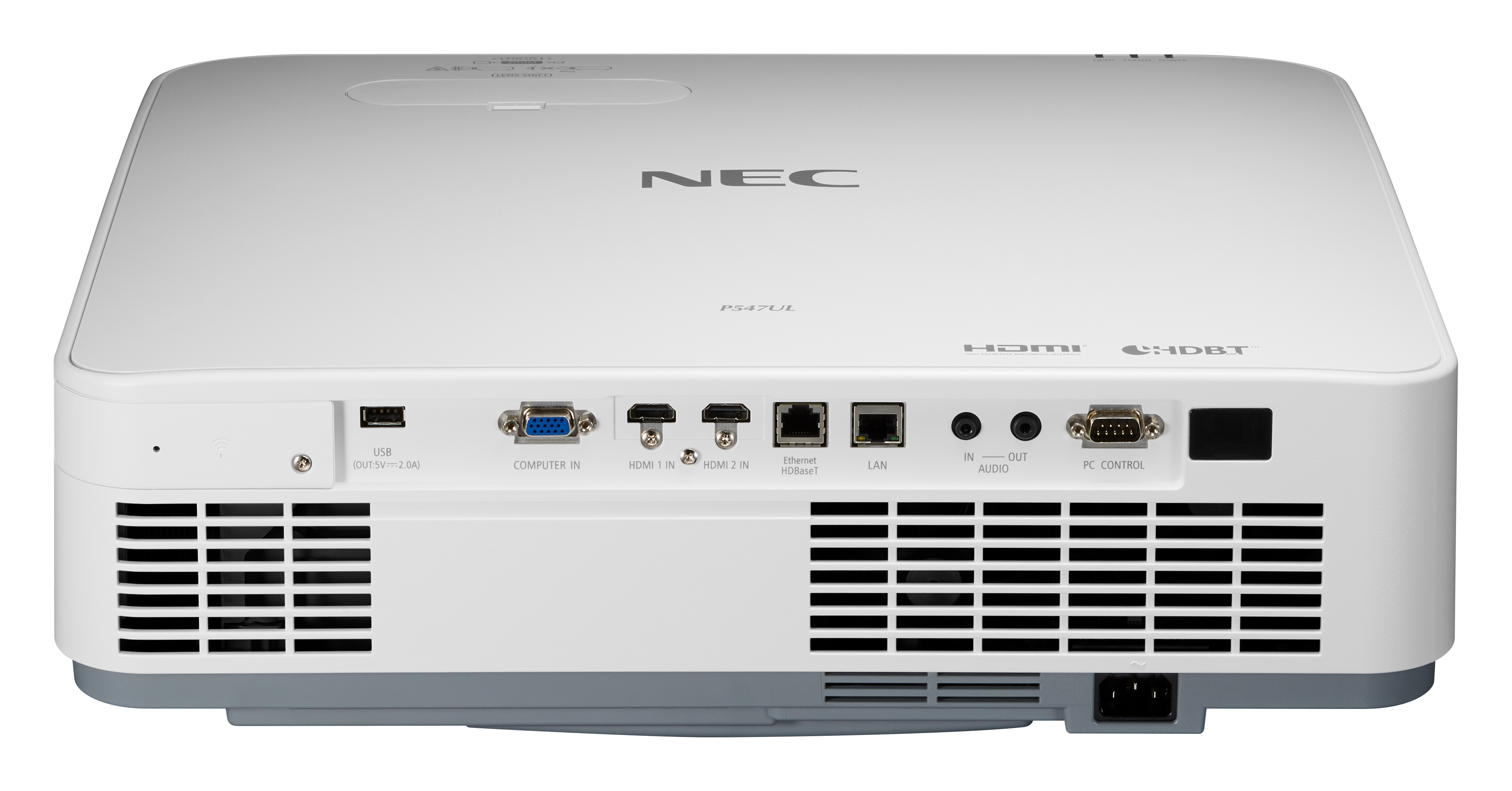

Connectivity
RGB (analog)
Input: 1 x Mini D-sub 15 pin
Digital
Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP
Audio
Input: 1 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control
Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN
1 x RJ45; Optional WLAN
USB
1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply; 1x Type A (W-LAN Dongle)
Video Signals
NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL60
Remote Control
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select
Electrical
Power Consumption [W]
293 (Normal) / 220 (Eco) / 1.6 (Network Stand-by) / 0.3 (Stand-by)
Mechanical
Dimensions (W x H x D) [mm]
480 x 122 x 407 (without lens and feet)
Weight [kg]
9.7
Fan Noise [dB (A)]
22 / 26 (Eco / Normal)
Colour Versions
White
Environmental Conditions
Operating Temperature [°C]
5 to 40
Operating Humidity [%]
20 to 80
Storage Temperature [°C]
-10 to 50
Storage Humidity [%]
20 to 80
Ergonomics
Safety and Ergonomics
CE; EAC; ErP; RoHS; TUEV Type Approved
Speakers [W]
1 x 20 (mono)
Additional Features
Special Characteristics
Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; DICOM simulation; Direct Power-Off Function; Free Tilt; HDBaseT; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; Mouse Control with USB Display; MultiPresenter Function; NaViSet Administrator 2; OSD with 30 languages; Plug&Play W-LAN Option; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer
Green Features
Ecological Materials
Downloadable manuals; ECO packaging
Ecological Standards
ErP compliant; RoHs compliant
Warranty
Projectors
3 years pan-European service
Light Source
3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents
2x AAA Batteries; IR Remote Control (477E); Lens Cap; Power Cord (1.8 m); Projector; Quick Setup Guide; Security Sticker; Users Manual; Utility software
Optional Accessories
Optional Accessories
Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF); Wireless LAN module (NP05LM2; NP05LM4; NP05LM5)
Datasheet for NEC P547UL

1 Compliance with ISO21118-2020

2 50% of initial brightness at the end of specified laser life time at 25 degree ambient temperature.
