Datasheet
Intuitive professional content delivery
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.
With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
Benefits
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
- Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
Product Information
Product Name

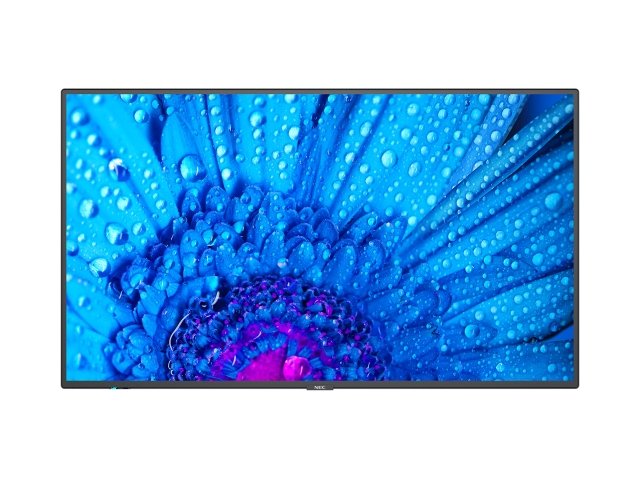

NEC MultiSync® M981
Product Group
LCD 98" Message Large Format Display
Order Code
60005069
Display
Panel Technology
IPS with Direct LED backlights
Screen Size [inch/cm]
98 / 248.92
Aspect Ratio
16:9
Brightness [cd/m²]
500
Contrast Ratio
≥ 8000:1 1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]
1.073 (10bit)
Colour Gamut
68% of DCI
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Haze Level [%]
Pro (28)
Supported Orientation
Landscape; Portrait
Resolution
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1920 x 1080; 1920 x 1200; 1920 x 2160; 2560 x 1440; 2560 x 1600; 3840 x 2160; 4096 x 2160; 7680 x 4320
Synchronisation Rate
Horizontal Frequency [kHz]
15 - 135
Vertical Frequency [Hz]
23 - 76
Connectivity
Input Video Digital
2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital
1 x DisplayPort; 2 x HDMI
Input Control
LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data
1 x USB 2.0 (Downstream); 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream)
Output Video Digital
1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC); 1 x HDMI (loop through: HDMI, SDM slot-in PC); DP (in) to HDMI (out) conversion
Output Audio Analogue
1 x 3,5 mm jack
Output Control
1 x LAN 100Mbit
Input Detect
Custom; First; Last
PiP/PbP
Dual-Split; Quad-Split; scalable picture size
Calibration
Factory Calibration
Gamma; Intensity; RGB; Uniformity; White Point
Sensor Calibration (through USB)
PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
Calibration with Software
Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
Calibration Software
NEC Display Wall Calibrator
Open Modular Intelligence
Intel® SDM
accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot
RPi Compute Module 4
Sensors
Ambient Light Sensor
Integrated, triggered actions programmable
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
Electrical
Power Consumption [W]
340 shipping
Power Savings Mode [W]
< 0.5; < 2 (Networked Standby)
Power Management
VESA DPMS
Power Supply
100-240 V AC; 50/60 Hz; internal
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 80
Storage Temperature [°C]
-20 to 60
Mechanical
Dimensions (W x H x D) [mm]
2,194.7 x 1,250.2 x 84.3
Weight [kg]
67
Bezel Width [mm]
14.3 (left, right and top); 14.8 (bottom)

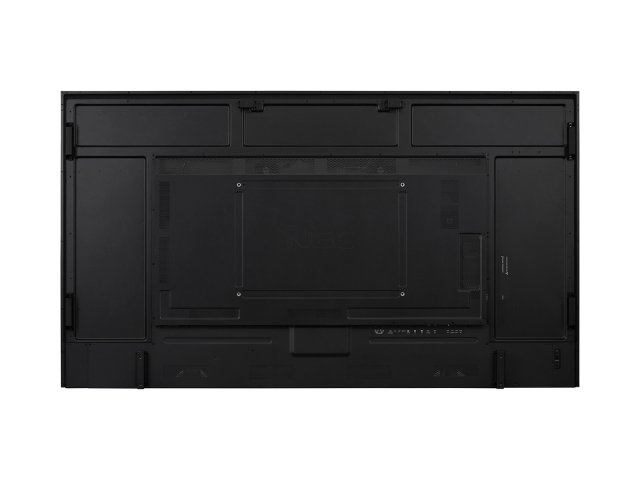

VESA Mounting [mm]
4 holes; 600 x 400 (FDMI); M8
Ingress Protection
IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm]
2,350 x 1,400 x 310
Packaging Weight [kg]
98.7
Colour Bezel
Pantone 426M (black)
Material
Metal
Available Options
Accessories
Feet (ST-801); Speaker (SP-RM3); Trolley (L20PNSR780MEU, PD02MHA, PD03MHA); Wall mount (L20PNWALL90EU, SF680P)
Regulatory
Safety and Ergonomics
BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class
ISO 9241-307, Class 1
Resistance to Fire
Metal backcover, plastic material certified acc. to UL94-5VB
Green Features
Energy Efficiency
Energy consumption: 205 kWh/1000 h; Energy efficiency class: F; LED backlight
Ecological Standards
EnergyStar 8.0
3rd Party Certifications
Cisco
Verified for Cisco Collaboration Devices
Crestron
Certified for Crestron Connected
Additional Features
Special Characteristics
DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
Audio
Integrated Audio Amplifier (for optional speakers up to 2 x 15 W); Integrated Speakers (10 W + 10 W)
Shipping Content
2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2
Operating Hours
24/7
External Control
AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management
Automated Email Alerts; NEC NaViSet Administrator 2
Security
Disable HW Buttons; Disable IR Functionality; Emergency Notification
1 out of the box conditions, local dimming ON
2 please refer to terms and conditions of warranty extensions
FCC Class B
CE
RoHS
RCM
VCCI
