Datasheet
Intuitive professional content delivery
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the Mxx1-2 series is the professional way to deliver your message, yet at an attractive price point.
With the optional Raspberry PI Compute Module or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the Mxx1-2-2 Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
Benefits
- Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
- Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
- Ease of use and operation – smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
Product Information
Product Name

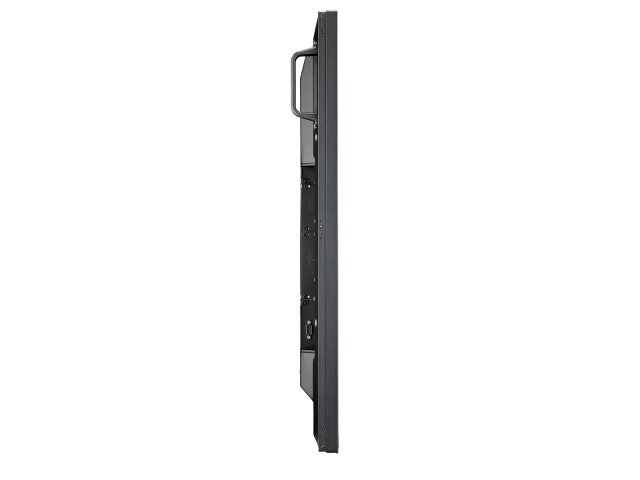

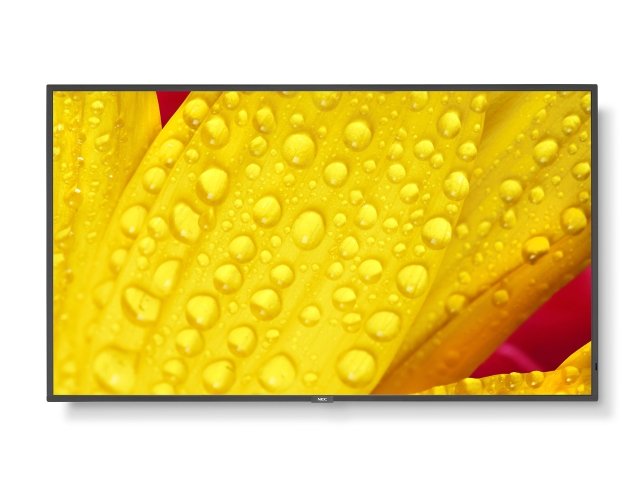

NEC MultiSync® M501-2
Product Group
LCD 50" Message Large Format Display
Order Code
60006084
Display
Panel Technology
VA with Direct LED backlights
Screen Size [inch/cm]
50 / 125.7
Aspect Ratio
16:9
Brightness [cd/m²]
500
Contrast Ratio (default)
> 8000:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]
1.073 (8bit + FRC)
HDR
HDR10; HLG; PQ
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Haze Level [%]
Pro (25)
Supported Orientation
Landscape; Portrait
Resolution
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1650 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160
Synchronisation Rate
Horizontal Frequency [kHz]
26 - 135
Vertical Frequency [Hz]
23 - 86
Connectivity
Input Video Digital
1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital
1 x DisplayPort; 2 x HDMI
Input Control
LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data
1 x USB 2.0 (MediaPlayer)
Output Audio Analogue
1 x 3,5 mm jack
Input Detect
Custom; First; Last
Open Modular Intelligence
Intel® SDM
accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot
RPi Compute Module 4
Sensors
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
Electrical
Power Consumption [W]
85 shipping
Power Savings Mode [W]
< 0.5; < 2 (Networked Standby)
Power Management
VESA DPMS
Power Supply
100-240 V AC; 50/60 Hz; internal
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 90
Storage Temperature [°C]
-20 to 60
Mechanical
Dimensions (W x H x D) [mm]
1,128.4 x 649 x 62.6
Weight [kg]
17.3
Bezel Width [mm]
14.9
VESA Mounting [mm]
4 holes; 400 x 400 (FDMI); M6
Ingress Protection
IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm]
1,298 x 860 x 224
Packaging Weight [kg]
24.1
Colour Bezel
Pantone 426M (black)
Material
Metal
MediaPlayer
Supported File Storage / File System
USB 2.0 / FAT16, FAT32
Supported Image Formats
JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
Supported Video Formats
MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats
MP3 (MP3); max. bit-rate 320 kBit/s
Available Options
Accessories
Feet (ST-43M); Presence Sensor (KT-RC3); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P)
Regulatory
Safety and Ergonomics
BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class
ISO 9241-307, Class 1
Resistance to Fire
Metal backcover, plastic material certified acc. to UL94-5VB
Green Features
Energy Efficiency
Energy consumption: 85 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards
EnergyStar 8.0
Additional Features
Special Characteristics
DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
Audio
Integrated Speakers (10 W + 10 W)
Shipping Content
2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 1
Operating Hours
24/7
External Control
AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management
Automated Email Alerts; NEC NaViSet Administrator 2
Security
Disable HW Buttons; Disable IR Functionality; Emergency Notification
1 please refer to terms and conditions of warranty extensions
CE
RoHS
VCCI
RCM
FCC Class B
