Datasheet
Boost engagement in learning environments
When you need to engage your audience, you need to make your delivery interactive. NEC/Sharp’s expertise in touch screens for education brings forth the LC series, designed to meet the demand for Bring Your Own Device (BYOD) preferences. Equipped with seamless USB-C connectivity, just a single cable connects display to personal device whilst receiving charge in return. Size up your screen area by connecting another display or projector via HDMI-OUT to be seen by a bigger audience.
An all-in-one solution, the LC series features pre-installed functionality for instant interactivity, and with the EShare feature, content can be wirelessly shared between devices for best collaboration amongst peers and mentors.
For higher education in classrooms and small work groups, the LC series offers low cost, easy to use functionality to boost engagement in learning environments.
Benefits
- Enjoy a natural writing experience – with precise and responsive touch interaction through bonded screen technology.
- Get an out-of-the-box-ready experience – with interactive functionality pre-installed; no external devices needed for an all-in-one solution.
- EShare – boosts participation by wirelessly sharing content from your device to the display, and from the display to multiple devices simultaneously.
- USB-C connectivity – instantly appeals to today’s users who favour using their own device. A single cable transmits data, video/ audio output and power delivery for the simplest and seamless connection, even powering the connected device at the same time.
- HDMI-OUT – allows connection of an additional output device such as a projector to present content on a larger canvas to reach a bigger audience.
Product Information
Product Name

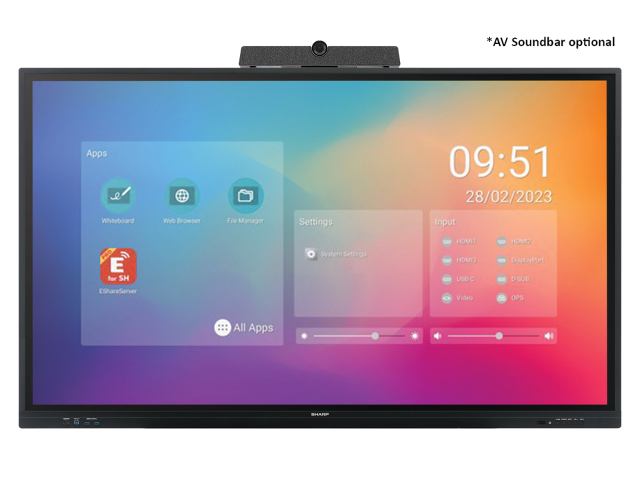

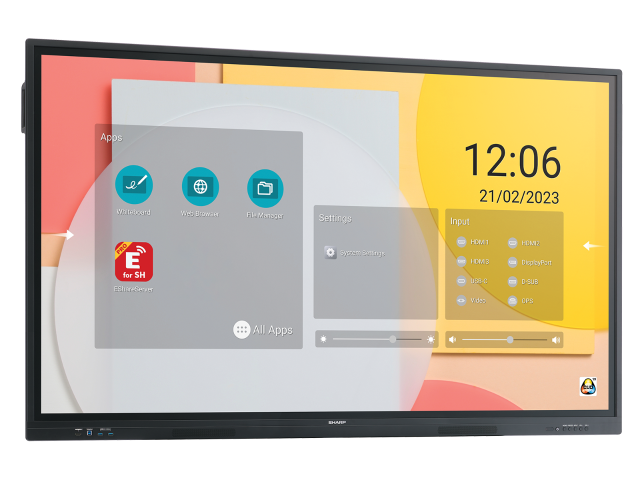

Sharp PN-LC862
Product Group
LCD 86" Infrared Touch Display
Order Code
60005901
Display
Panel Technology
IPS with Direct LED backlights
Active Screen Area (W x H) [mm]
1,895 x 1,066
Screen Size [inch/cm]
86 / 217.4
Aspect Ratio
16:9
Pixel Pitch [mm]
0.494
Brightness (without glass) [cd/m²]
450
Contrast Ratio (typ.)
1200:1
Viewing Angle [°]
178 / 178 (at contrast ratio > 10:1)
Colour Depth [bn]
1.07 (8bit + FRC)
Response Time (typ.) [ms]
8 (grey-to-grey)
Supported Orientation
Landscape
Touch
Touch Technology
Infrared
Number of Touches
Real multi-touch up to 20 touches
Touch Method
Finger; Gloves; Stylus dual pen tip (3mm/9mm)
Data Interface
USB 2.0 (full speed) HID; USB powered, plug & play
Accuracy [mm]
+/- 1
Windows Ink
no
Palm Rejection
no
Operating System
Native Multi-Touch: Windows 8.1/10/11, Linux, Android 9.0 or higher, Chrome OS 87 or higher; Single Touch (Default Mouse): Mac OS 10.15/11/12
Glass
Type
Thermal-tempered, anti-glare coating; Zero Bonding
Bonding Gap [mm]
0.8
Thickness [mm]
3.2
Haze Level [%]
3 ~ 8
Hardness [H]
≥ 8
Resolution
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768; 1280 x 1024; 1280 x 960; 1360 x 768; 1440 x 900; 1680 x 1050; 1920 x 1080; 1920 x 720; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 480; 720 x 576; 800 x 600
Connectivity
Input Video Analogue
1 x VGA
Input Video Digital
1 x DisplayPort (with HDCP); 1 x USB-C (with HDCP, 65 W); 3 x HDMI (with HDCP)
Input Audio Analogue
1 x 3,5 mm jack
Input Control
1 x RS232; LAN 10Base-T/100Base-TX/1000Base-T
Input Data
4 x USB 3.0 (Type-A)
Input Touch
1x USB Type-C (shared with video input); 2 x USB 3 (Type-B)
Output Video Digital
1 x HDMI (loop through: HDMI, DP, OPS slot-in PC, Android SoC)
Output Audio Analogue
1 x 3,5 mm jack
Output Audio Digital
1 x SPDIF
Input Detect
Last
Open Modular Intelligence
OPS Slot
Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W]
4.74 / 90
Electrical
Power Consumption [W]
260 Eco (shipment setting), 500
Power Savings Mode [W]
< 0.5 (ECO Standby); < 2 (Networked Standby)
Power Supply
100-240 V AC; 50/60 Hz
Environmental Conditions
Operating Temperature [°C]
+5 to +35
Operating Humidity [%]
20 to 80
Mechanical
Dimensions (W x H x D) [mm]
1,967.9 x 1,170.2 x 87.1
Weight [kg]
65
Bezel Width [mm]
21.9 (left, right and top); 53.2 (bottom)
VESA Mounting [mm]
4 holes; 800 x 600 (FDMI); M8
Packaging Dimensions (W x H x D) [mm]
2,160 x 1,310 x 225
Packaging Weight [kg]
81
Material
Aluminum alloy (front side); metal (back side)
Embedded Computing
System Version
Android 11
CPU
Arm Cortex-A55 (Quad-Core)
System Memory
4G RAM
Internal Storage
16GB ROM
Android Features
Hide compass and side bar
Built-in Applications
File Manager; Input Select; Setting; Web Browser; Whiteboard; Wireless Screen Sharing - E-Share
Built-in Tools
Annotation overlay mode; Calculator; Calender; Compass for shortcut button; Screen recorder; Timer; Voting Kit
Bluetooth
Bluetooth
4.2 compliant, supported protocols: A2DP, AVRCP, GATT, HID, HSP, HFP
Wireless LAN
WLAN
IEEE802.11ac/n/a/g/b compliant
Available Options
Accessories
Pen software license extension PN-SU01; Soundbar (PN-ZCMS1); Trolley (PD02MHA-CB86; PD03MHA-CB86); USB-C cable (USB-C 5M); Wall mount (SF680P)
OPS Slot
Recommended: OPS Enterprise Pro (100016118), OPS Enterprise Ultra (100016122)
Regulatory
Safety and Ergonomics
CE; FCC; RCM; REACH; RoHS; UKCA; UL/C-UL
Green Features
Energy Efficiency
ECOMode; LED backlight
3rd Party Certifications
Barco ClickShare
Tested compatible for Barco ClickShare (Conference)
Additional Features
Special Characteristics
CEC Support; HDMI ARC; NaViSet Administrator 2 - free download; Powered USB Port (65 W)
Audio
Integrated Speakers (15 W + 15 W)
Shipping Content
1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Cable Clamps; Display; Pen Tray; Power Cable; Remote Control; User Manual; Wireless Adapter
Warranty
3 years warranty incl. backlight; optional 4. + 5. year warranty extension 1
Operating Hours
16/7
Remote Management
NEC NaViSet Administrator 2
Security
Disable HW Buttons; Disable IR Functionality; Disable USB and LAN Ports
1 please refer to terms and conditions of warranty extensions
